Item NO.:
JH21-63Payment:
TT 100%; 30% deposit ，the balance against docPrice:
$16000Goods stock:

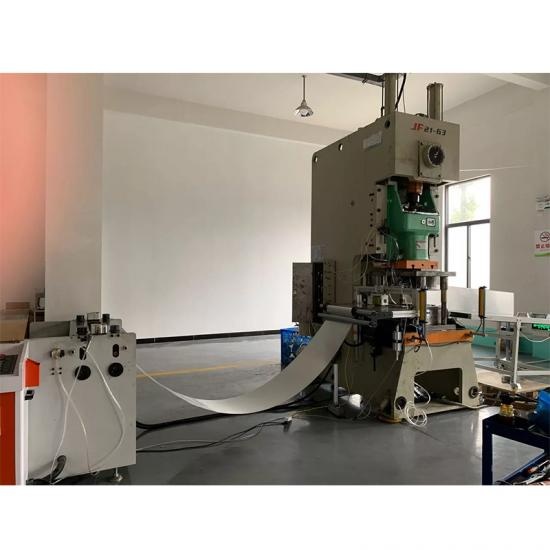

5Aluminum Foil Container production Punching Machine
1.the body of high-quanlity steel,after tempering(or vibration aging) shot blasting treatment good rigidity,accuracy and stability.
2,Longitudinal crankshaft structure,compact structure,crankshaft after high frequency quenching grinding processing,good smoothness,flexible rotation;rectangular six face lengthened guide,guide surface bronze panels and guiding preciion high.
3,Gas dynamic double balance cylinder,balance slide and theupper die weight,educe the impact and noise,elimination of the connecting rod and the slide block gap,reduce by parts of impact and abrasion.
4,Overall adopts imported PLC centralized control,gas path selection of imported safe double valve control can realize dynamic,inching,single and continuous punching.
5,Slider,a guide rail,a worktable,a conneting rod,a connecting sleeve and key pieces are made of resin sand manufacture, with the ordinary clay sand manufacturing compared to improve the surface roughness 1-2 level,improve the dimensional accuracy of 2-3 grade
6,The electric adjusting device for mold height,fine configurationg key parts such as pneumatic components,electrcal components,sealing parts,buttons and other are imported tonnage products,JH21-60 over and above the.
| NAME |
Aluminium foil making machine |
|
MODEL& Total Power(kw) |
JH-21 63 & 7.5ton |
|
Nominal Pressure |
630 |
|
slide stroke(mm) |
100mm |
|
Travel times(min) |
45 |
|
Maximum seal height(mm) |
410 |
|
Die handle hole diameter(mm) |
50 |
|
Depth of tiger mouth(mm) |
480*400mm |
|
Stemhole Size(mm) |
250mm |
|
Size of working sub-table(mm) |
880*570mm |
|
Diameter of worktable auxiliary hole(mm) |
180mm |
|
Main table size |
450*300 |
|
Closed adjustable height |
90 |
Aluminum Foil Container production Making Machine,the body of high-quanlity steel,after tempering(or vibration aging) shot blasting treatment good rigidity,accuracy and stability.
Paper Tube machine is used to cut paper tube. Feature: 1. Close door automatically. 2. Simple, convenient, low price. 3. Cutting pneumatic, high speed.
2-Shaft semi-auto aluminum foil rewinding machine is used to rewind the aluminum foil for different length.which produces disposable household aluminum foil rolls,kitchen foil rolls and cling wrap rolls or stretch film rolls for for storing food and keeping fresh.
Automatic Stretch Film Cling Film Rewinder uses to converting the big stretch film Jumbo roll into small rolls in different length. It is auto paper core feeding, film rewinding, and finish roll collecting. By highly rewinding speed, the machine can improve the production efficiency and saving the labor cost.
Heart-shaped aluminum foil cake box is made of food degrade aluminum foil material . This aluminum foil container is fashion ,using it to fill a cake is more intuitive to express love.
Thickened 1450ml square barbecue tray high temperature resistant aluminum foil box is special ,the inside is golden color and the outside is black .
2800ml round lobster aluminum foil box ,which ueses the enviromentlly material , the out side is golden printing .We use this disposable aluminum foil container ,It not only saves the cleaning time, but also relieves the environmental pressure greatly.
Disposable PP cup with the plastic lid is wisely used in the cold drink,tea with milk .
